RL78/G15小型小引脚通用MCU微控制器Renesas
发布时间：2024-05-27 09:46:45 浏览：604
Renesas RL78/G15是一款功能强大的通用微控制器，适用于各种小型应用场景。以下是其主要特性：
- CPU内核：采用RL78内核，最高运行频率为16MHz，提供高效的处理性能。
- 工作电压：支持范围从2.4V到5.5V，使其能够适应不同的电源供应条件。

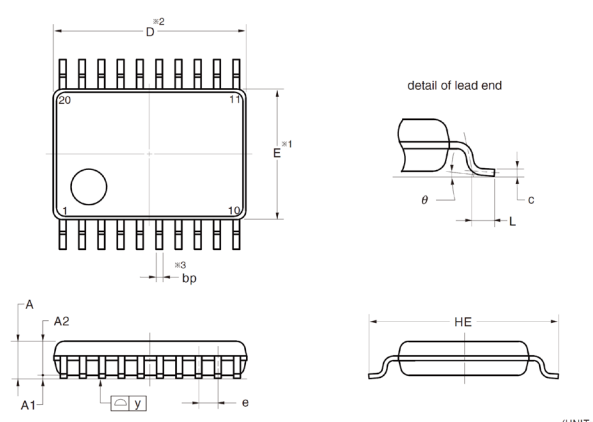

- 封装：提供了从8引脚到20引脚的多种封装选项，以满足不同应用的需求。
- 闪存：具有4KB或8KB的程序闪存，以及1KB的SRAM和1KB的数据闪存，提供了足够的存储空间。
- 工作温度：能够在-40°C到125°C的广泛工作温度范围内稳定运行，适用于各种环境条件。
- 定时器：具备8路16位定时器、1路看门狗定时器和1路12位间隔定时器，满足不同的定时需求。
- 模拟功能：包括11路10位A/D转换器和比较器，用于实现模拟信号的处理和比较功能。
- 片上振荡器：内置高精度高速片上振荡器，频率范围从1MHz到16MHz，以及低速振荡器，频率为15kHz。
- 连接接口：支持SCI(包括CSI、UART和简单版I2C)和I2C接口，便于与其他设备进行通信。
- 其他特性：可选的通电重置、低电压检测功能，以及支持片上调试功能，操作电压范围为2.4V到5.5V。
产品型号：
| Product ID | Program Memory (KB) | RAM (KB) | Lead Count (#) | Temp. Range | Bit Size | Data Flash (KB) | Supply Voltage (V) | Operating Freq (Max) (MHz) | Pkg. Dimensions (mm) |
| R5F12068MSP#30 | 8 | 1 | 20 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12017ASP#10 | 4 | 1 | 10 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017ASP#30 | 4 | 1 | 10 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017ASP#50 | 4 | 1 | 10 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017GSP#10 | 4 | 1 | 10 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017GSP#30 | 4 | 1 | 10 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017GSP#50 | 4 | 1 | 10 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017MSP#10 | 4 | 1 | 10 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017MSP#30 | 4 | 1 | 10 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12017MSP#50 | 4 | 1 | 10 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018ASP#10 | 8 | 1 | 10 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018ASP#30 | 8 | 1 | 10 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018ASP#50 | 8 | 1 | 10 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018GSP#10 | 8 | 1 | 10 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018GSP#30 | 8 | 1 | 10 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018GSP#50 | 8 | 1 | 10 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018MSP#10 | 8 | 1 | 10 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018MSP#30 | 8 | 1 | 10 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12018MSP#50 | 8 | 1 | 10 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 4 x 1.45 |
| R5F12047ASP#10 | 4 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047ASP#30 | 4 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047ASP#50 | 4 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047GSP#10 | 4 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047GSP#30 | 4 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047GSP#50 | 4 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047MSP#10 | 4 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047MSP#30 | 4 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12047MSP#50 | 4 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048ASP#10 | 8 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048ASP#30 | 8 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048ASP#50 | 8 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048GSP#10 | 8 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048GSP#30 | 8 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048GSP#50 | 8 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048MSP#10 | 8 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048MSP#30 | 8 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12048MSP#50 | 8 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 5 x 1.725 |
| R5F12067ASP#30 | 4 | 1 | 20 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067ASP#50 | 4 | 1 | 20 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067GSP#30 | 4 | 1 | 20 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067GSP#50 | 4 | 1 | 20 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067MSP#30 | 4 | 1 | 20 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12067MSP#50 | 4 | 1 | 20 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068ASP#30 | 8 | 1 | 20 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068ASP#50 | 8 | 1 | 20 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068GSP#30 | 8 | 1 | 20 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068GSP#50 | 8 | 1 | 20 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12068MSP#50 | 8 | 1 | 20 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 4 x 6 x 1.45 |
| R5F12007ANS#10 | 4 | 1 | 8 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007ANS#30 | 4 | 1 | 8 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007ANS#50 | 4 | 1 | 8 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007GNS#10 | 4 | 1 | 8 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007GNS#50 | 4 | 1 | 8 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007MNS#10 | 4 | 1 | 8 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007MNS#30 | 4 | 1 | 8 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007MNS#50 | 4 | 1 | 8 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008ANS#10 | 8 | 1 | 8 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008ANS#30 | 8 | 1 | 8 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008ANS#50 | 8 | 1 | 8 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008GNS#10 | 8 | 1 | 8 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008GNS#50 | 8 | 1 | 8 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008MNS#10 | 8 | 1 | 8 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008MNS#30 | 8 | 1 | 8 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047ANA#00 | 4 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047ANA#20 | 4 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047GNA#00 | 4 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047GNA#20 | 4 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047GNA#40 | 4 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047MNA#00 | 4 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047MNA#20 | 4 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047MNA#40 | 4 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048ANA#00 | 8 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048ANA#20 | 8 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048ANA#40 | 8 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048GNA#20 | 8 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048GNA#40 | 8 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048MNA#00 | 8 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048MNA#20 | 8 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048MNA#40 | 8 | 1 | 16 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12007GNS#30 | 4 | 1 | 8 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008GNS#30 | 8 | 1 | 8 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12008MNS#50 | 8 | 1 | 8 | -40 to 125°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12048GNA#00 | 8 | 1 | 16 | -40 to 105°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
| R5F12047ANA#40 | 4 | 1 | 16 | -40 to 85°C | 16 | 1 | 2.4 - 5.5 | 16 | 3 x 3 x 0.8 |
总的来说，Renesas RL78/G15微控制器提供了强大的功能和丰富的接口选项，适用于各种小型应用场景，包括家电、消费类电子产品以及工业设备等领域。同时，它还提供了便捷的开发环境和与现有RL78系列的兼容性，使得软件设计和开发过程更加简化和高效。
